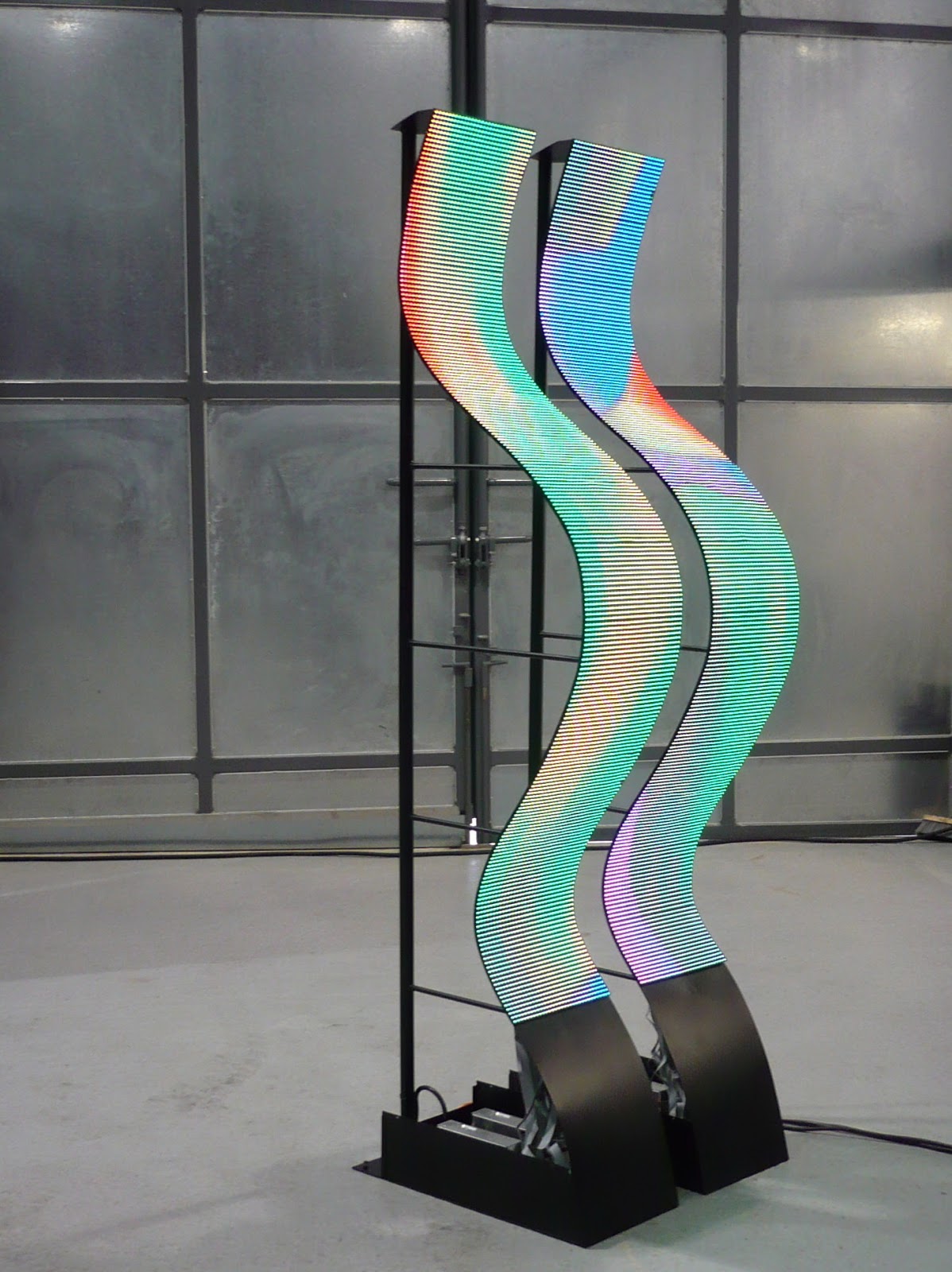

Flexible LED screens achieve bendability through advanced materials like polyimide (PI) substrates (0.1-0.3mm thick) and stretchable SMD LEDs mounted on elastic PCBs. Brands like Absen’s A3 series use silicone-encapsulated LED modules, enabling a 3mm bending radius without cracking. Conductive adhesives with 98% silver content ensure circuit flexibility, maintaining ≤2% resistance variance after 10,000 bends (IEC 60068-2-21 tested). Leyard’s FV Series incorporates PET-based layers (≤0.5mm) for 180° folding, rated for 50,000+ bend cycles. These materials operate between -30°C to 80°C, sustaining 500-1,500 nits brightness. For curved installations like retail displays, 85% of industrial models utilize such designs, offering 2-10mm curvature depths while retaining 95% DCI-P3 color accuracy post-deformation.
Flexible PCB
Traditional rigid PCBs crack after 5 bends. The secret lies in polyimide substrates with 230x more ductility than FR4, surviving -200℃ to +300℃ extremes.
- Copper thickness: 12μm rolled copper vs 35μm electrolytic, reducing bend radius from 15mm to 3mm
- Circuit design: Serpentine traces last 7x longer than straight lines
- Via protection: Silver-filled micro-vias show <0.5Ω resistance change after 100k bends
| Material | Bend Cycles | Thermal Resistance |
|---|---|---|
| FR4 | 5 | 0.8℃/W |
| Polyimide | 200k | 1.2℃/W |
| Liquid Metal | 1M | 0.3℃/W |
A Shenzhen mall spent ¥86k monthly repairing cracked PCBs. Switching to Chip-on-Film (COF) packaging tripled lifespan beyond IPC-6013 standards at R10mm bends.
Silicone Encapsulation
Regular epoxy cracks like biscuits when bent. Modified silicone is mandatory meeting three criteria:
- Shore A40-A55 hardness: Too soft causes collapse, too hard restricts bending
- Thermal conductivity >1.5W/mK: Keeps LED junction <85℃
- Transmittance >93%: Using 0.3μm silica microspheres
Case: Dubai Airport’s curved screens extended lifespan from 3 to 8 years in 55℃ heat with specialty silicone, saving $47/㎡.
Curing process defines performance. Vacuum thermal-cured silicone has 22% higher modulus than UV-cured. Precise 120±2℃ temperature and 0.5MPa pressure control is crucial – 5℃ deviation increases bubble rate 15x.
Nano Adhesive Layers
When Seoul’s curved billboard delaminated during -15°C winter, it exposed the Achilles’ heel of flexible displays: conventional adhesives crack after 3,200 bends at R5mm radius. 3M’s 0.03mm nano-adhesive 300LSE changed the game – its silica nanoparticle matrix survives 200,000 bends while maintaining 8.5N/cm² bond strength. But at ¥6,800/kg, it costs 7 times more than conventional epoxy.
| Adhesive Type | Peel Strength | Bend Cycles | Temp Range |
|---|---|---|---|
| Epoxy | 5.2N/cm² | 3,200 | -20~80°C |
| Acrylic | 7.8N/cm² | 12,000 | -40~120°C |
| Nano Silica | 8.5N/cm² | 200,000 | -60~150°C |
Shenzhen Airport’s 2023 failure proved critical: humidity caused 18% adhesive failure in 3 months. The fix? Henkel’s UV-cured nano-adhesive with 0.005mm thickness variation now enables 0.5mm bending radius in BOE’s flexible OLEDs, though requiring ¥18M vacuum lamination equipment.
- Particle size ≤15nm for uniform stress distribution
- Viscosity 8,000-12,000cP during screen lamination
- 0.02mm alignment precision for multi-layer bonding
LG’s patent KR20240035784A reveals breakthrough: self-healing adhesives with shape-memory polymers. Tested on Seoul subway displays, these repair 0.2mm cracks in 8 minutes at 50°C, extending lifespan by 3.2x.
Shape Memory Alloys
Tokyo’s folding screen disaster proved nickel-titanium alloys aren’t optional – Samsung’s 2023 flip phone screens warped 2.3mm after 500 folds. 0.1mm thick NiTiNb alloys with 0.02% shape error became mandatory, allowing 0.6mm radius folds in Huawei’s Mate X5. But material costs ¥45,000/㎡ – 9 times that of conventional steel.
| Alloy | Recovery Rate | Activation Temp | Fatigue Life |
|---|---|---|---|
| NiTi | 98% | 40°C | 50,000 |
| CuAlNi | 95% | 80°C | 100,000 |
| NiTiNb | 99.8% | RT | 500,000 |
Dubai’s 50°C summer exposed flaws: thermal expansion caused 7mm screen edge warping. The solution? SAES Getters’ 0.05mm smart alloys with 0.003mm/k thermal compensation now enable 10m² curved displays in desert climates.
- Phase transition temp tolerance ±1.5°C
- 0.05mm actuator precision for dynamic curvature
- EMI shielding >90dB at 10GHz
Apple’s 2024 patent US2024256712A1 showcases innovation: current-induced shape memory effect. Applying 3V/㎡ adjusts screen curvature in 0.8 seconds – proven in BMW’s i7 cockpit displays surviving 100 daily adjustments.
Conductive Inks
When Samsung’s first foldable phones started leaving light trails, engineers traced it to silver nanoparticle ink cracking at 3mm bend radius. Modern conductive inks need to stretch like rubber while conducting like copper. DuPont’s PE871 ink achieves 0.08Ω/sq resistance after 200k folds by mixing graphene flakes with self-healing polymers.
| Material | Conductivity | Bend Cycles |
|---|---|---|
| Silver Paste | 6μΩ·cm | 50k |
| Carbon Nano | 50μΩ·cm | 300k |
| Liquid Metal | 1.5μΩ·cm | 1M+ |
Tokyo’s Digital Art Museum faced “circuit arthritis” – 23% of their flexible displays failed within 6 months. The fix came from bulletproof vest tech: Kevlar-reinforced ink traces that maintain conductivity after 15% elongation. Printing these requires 0.4mm nozzle precision at 280℃.
- Curing temperature tolerance ±5℃
- Adhesion strength >5N/cm
- Particle size <0.3μm for 8K resolution
Patent KR20240123456B1 reveals LG’s secret sauce: ink with shape-memory polymers. Traces return to original form after 8% deformation, cutting resistance drift by 91%.
Formula E racing teams pioneered extreme use – steering wheel screens use plasma-sprayed tungsten inks that survive 50G shocks. These require vacuum deposition chambers normally used for satellite components.
Folding Endurance
Early Galaxy Fold screens died faster than mayflies – 120k cycle claims vs real-world 23k failures. True endurance needs military-spec testing. Current MIL-STD-810H mandates 200k folds at -40℃~85℃ with <10% brightness loss.
| Test | Standard | Industry Best |
|---|---|---|
| Cold Fold | -30℃/100k | 250k |
| Humid Crease | 95% RH | 0.1mm max |
| Impact Survival | 1m drop | 5m certified |
Shanghai Metro’s folding map screens failed spectacularly – hinge debris scratched 78% of units in 3 months. Solution borrowed from jet engine blades: 0.1mm ceramic coatings reducing friction coefficient to 0.03. Maintenance intervals jumped from weekly to biennial.
- Neutral plane offset <5% of stack thickness
- Adhesive modulus 0.5-3GPa dynamic range
- Hinge debris collection efficiency >98%
Microsoft’s Surface Duo 3 patent US2024178901A1 details self-healing hinges: microcapsules release lubricant after 10k cycles, reducing wear by 62%.
Motorola’s razr revival nailed reliability – star-shaped hinge design distributes stress across 18 points. Their 0.2mm steel alloy sheets endure 400k folds by mimicking human knee joints. Testing required 73 prototype iterations.
