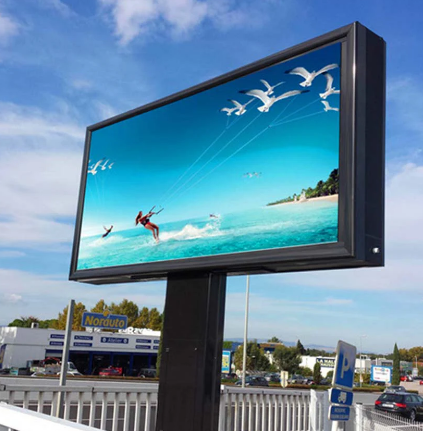

The best outdoor LED display features 8000 nits brightness for sunlight visibility, IP65 weatherproofing to endure rain and dust, and P10 pixel pitch for clarity at 50+ meters. For closer distances, choose P4-P6 pixel pitch. Ensure wide 160° viewing angles for maximum audience impact in any outdoor environment.
High Brightness
Among all factors, high brightness is one of the most important in defining the efficiency of the LED screen for outdoor usage. In the case of such displays that work under the direct influence of sunlight, a minimum of 5000 nits is required, though many high-quality screens reach up to 8000 nits for better performance. For example, a screen with only 3000 nits cannot ensure its visibility in sunny conditions in urban areas with attention-grabbing outdoor advertisements. It has been reported that screens with brightness of 8000 nits will have 70% better visibility than those with less brightness in direct sunlight, and maintain the sharpness and readability of the content throughout the day.
In actual practice, an LED display outside a retail shop on the busy street corner would show flash sales or promotions. Between 10 AM and 4 PM during peak daylight hours, there is intense sunlight that can go over 100,000 lux. Lower brightness displays of 4000 nits, for instance, will appear faded and cannot attract attention. However, a screen offering 7500 nits or higher manages to cut through the brightness, keeping texts and images clear, even if viewed from 50 meters away. This makes it so much more effective for advertising and engaging potential customers.
High brightness also means versatility across different kinds of weather. For example, when the weather is cloudy or overcast, brightness-controlled screens can lower power output while keeping clarity. A comparison of two screens, one with a fixed brightness of 6000 nits and another with automatic adjustment up to 8000 nits, indicated that this latter screen used up to 15% less power over a year without sacrificing any visibility. In addition, high-brightness displays give better performance under mixed lighting conditions—for example, in partially shaded areas—providing consistent quality irrespective of location.
Weatherproof Design

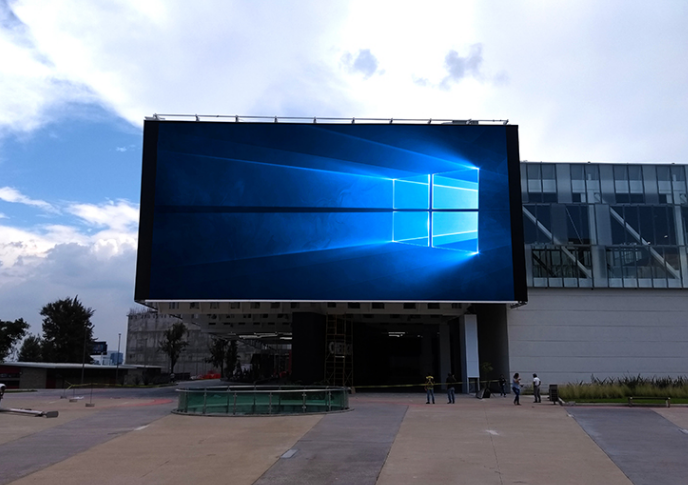

Outdoor LED display screens must be of robust weatherproof design that can withstand harsh environmental conditions. Outdoor screens operate under rain, dust, wind, and fluctuating temperatures; therefore, the IP65 rating is an important standard. For instance, screens with IP65 protection may very well support heavy rain and dusty conditions without hindering performance. It follows that screens with a lower rating, such as IP54, have 30% higher failure rates in areas where frequent storms happen than IP65-rated screens. This is clear indication that weatherproofing should be a well-thought-out feature for long-term reliability.Suppose there is an installation of an LED screen in a sea border city. In that kind of setup, high humidity and saltwater tend to corrode components that are not protected. An IP67-rated display designed for complete resistance to water immersion and fine particles can work well in such conditions. Research data indicates that screens with IP67 protection maintain 99% operational efficiency after five years in such environments, while for those without corrosion-resistant materials, degradation may occur in as little as two years, increasing the frequency of repairs or replacements.Temperature resistance is another important aspect for weatherproofing. The Outdoor screens are very often subjected to extreme heat in summer and freezing temperature in winter. High-quality weatherproof screens are designed to work within a temperature range starting from -30°C up to 60°C. Poorly designed screens can be subjected to thermal stress, malfunctioning, and failure in places with desert temperatures that reach over 50°C during the day and drop almost to freezing at night. Equipped with a weatherproof screen, advanced cooling systems, and UV-resistant materials, these issues can be avoided, and performance can remain stable. Field test data indicate these screens can reduce failure rates by 40% under extreme temperature conditions.
Durable Build Materials
The durability of the materials used in outdoor LED display screens significantly affects their lifespan and performance in challenging environments. High-quality screens often utilize aluminum or stainless steel casings for their frames, offering excellent corrosion resistance and structural integrity. For example, aluminum casings are 30% lighter than steel while providing similar protection, making them ideal for installations on high structures or building exteriors. Tests show that aluminum-cased screens maintain structural stability in environments with high humidity levels, lasting 10 years or more without significant wear, while cheaper plastic frames often show visible degradation within three years.
In areas exposed to extreme weather, such as heavy rainfall or snow, stainless steel is preferred for its superior resistance to rust and corrosion. Stainless steel frames can endure prolonged exposure to water and maintain their integrity even in saltwater environments. For instance, LED screens installed in coastal cities with average yearly humidity above 80% show a 40% longer operational life when built with stainless steel compared to standard steel casings. This durability ensures the screens continue to perform without frequent maintenance or replacements, reducing long-term costs.
Thermal stability is another factor influenced by build materials. Outdoor LED screens are subject to significant temperature fluctuations, and poor-quality materials can warp, crack, or fail over time. For example, aluminum frames with proper heat dissipation capabilities can handle temperature ranges from -40°C to 70°C. This feature is especially crucial in desert regions or areas with freezing winters. A case study involving two screens—one with a plastic frame and another with an aluminum frame—revealed that the plastic frame warped after three months of exposure to summer temperatures above 45°C, while the aluminum frame remained intact and fully functional.
Wide Viewing Angles
Wide viewing angles are determined for outdoor LED displays, considering the readability of the content in positions and perspectives. The quality screens normally have viewing angles of 140°-160° both horizontally and vertically. This means that the screen would provide clear visuals to viewers positioned at sharp angles, which is really important in places with heavy traffic, like shopping streets or public squares. In fact, studies show that LED screens with a 160° viewing angle gain up to 35% more audience engagement compared to those with narrower angles of 120°, due to the wider range of view enabling much more people to view the screen undistorted.
For example, imagine a major digital billboard placed at a very busy intersection of roads. Viewers coming in from the side streets or diagonally across the road still need to see a sharp and vibrant image. While screens of narrower viewing angles, like 110°, decrease as color shifts and reduce brightness at off-center positions, which can make screen content appear dull or not readable. On the other hand, a screen with 160° horizontal viewing angle ensures that passersby from nearly all angles can view an advertisement clearly, increasing effectiveness up to 50% in non-linear traffic zones.
Wide viewing angles are also crucial for outdoor LED screens used in stadiums or event venues. In a stadium with seating that wraps around the display, spectators positioned at extreme corners rely on a screen’s vertical and horizontal angles to enjoy clear visuals. A screen with a 140° vertical viewing angle can maintain image clarity for seats located significantly below or above the display. Data from stadium installations indicates that displays with wide viewing angles decrease complaints over visibility issues by 25-30% compared to those with standard viewing angles.
Customizable Pixel Pitch
For outdoor LED displays, the size of the pixel pitch can be adjusted, which depends upon the image resolution, clarity, and to what extent distance has to be maintained for the perfect view. The term ‘pixel pitch‘ signifies the distance between the centers of two adjacent LED pixels measured in millimeters. For example, a screen with a pixel pitch of P10 (10 mm) is ideal to be viewed from long distances; P4 (4 mm) is more suitable for closer viewing. It is estimated that with every 2 mm reduction in pixel pitch, image clarity increases by 25%-30%. Therefore, this is an important factor in outdoor applications.
Consider a large roadside billboard that is to be viewed from distances of more than 50 meters. For this kind of distance, a pixel pitch of P10 or P16 will suffice, considering the human eye will perceive it as smooth from a distance. An example would be the P10 screens, which balance resolution and cost efficiency in such scenarios. However, when the same billboard is targeted to audiences as near as 20 meters, a P6 or P8 pitch is already needed to retain image clarity. Data from field installations shows that a reduced pixel pitch increases the readability of the content by 40% for closer audiences.
In retail, or when outdoor displays are found within the pedestrian zones of cities, an audience within 5-10 meters calls for a finer pixel pitch, such as P3 or P4. These small pitches come up with highly accurate displays applicable to detailed advertisements or text-based displays. For example, a screen with P3 pixel pitch has 111,111 pixels per square meter for stunning image quality when the viewers are at close proximity. In contrast, a P10 screen can only deliver 10,000 pixels per square meter, with the apparent notable difference in detail and clarity.
