LED screen clarity is determined by pixel pitch measurement using laser micrometers or manufacturer specs, with optimal values tied to viewing distance: 0.9mm pitch (2,500 PPI) for control rooms at 2m vs 4mm (635 PPI) in stadiums at 20m. Sharpness follows a quadratic relationship – 0.6mm screens achieve 98% MTF at 60 cycles/degree versus 78% for 1.5mm models (SID DisplayWeek 2023). The ANSI/INFOCOMM 3M-2011 standard requires contrast testing at 150% intended viewing distance, with sub-1.2mm pitch (LG 2023) eliminating visible pixels in 4K content viewed from 3m (0.018° visual angle threshold).
Measurement Tools
Measuring pixel pitch is like giving LED screens an eye test – wrong tools cause “severe myopia”. A 2023 Shenzhen shopping mall project using incorrect tools for P1.2 fine-pitch screens resulted in 0.15mm deviation and ¥2.3M compensation claims, proving tools beat human judgment.
Industrial microscopes aren’t just for labs. During Beijing Winter Olympics’ 8K floor screen inspection, Olympus DSX1000’s 200x magnification revealed encapsulant overflow at pixel edges. Field measurements face 0.01℃ thermal drift causing ±0.03mm errors – solved by switching to carbon fiber brackets.
Digital micrometers require precise conditions. Measuring Samsung IMD modules needs 0.001mm-resolution tools at 23℃±1℃. A manufacturer in Hainan measured P2.5 screens as 2.46mm at 40℃ noon and 2.53mm at night – aluminum substrate thermal expansion caused the variance.
| Tool | Accuracy | Application |
|---|---|---|
| Industrial Microscope | ±0.02mm | Lab-grade inspection |
| Digital Micrometer | ±0.05mm | Field measurement |
| Calibration Card | ±0.1mm | Maintenance check |
Calibration cards prevent fraud. A manufacturer’s “P0.9” screens measured 0.89mm under microscope but 0.93mm with NIST-certified cards – they tampered with software scale. Now cards require humidity sensors and blockchain data logging.
Formula Calculations
Pixel pitch calculation is 3D geometry, not simple division. Shanghai stadium’s curved screen calculated as P3.0 using flat formulas showed mosaic patterns due to missing curvature compensation, wasting ¥3M renovation.
Basic formula width ÷ horizontal pixels fails for curved screens. A 15m-radius circle (94.2m circumference) accumulates 0.7mm error per degree if calculated linearly. Correct method uses arc length formula: 2πR×(angle/360), achieving 0.05mm accuracy in Canton Tower project.
Pixel arrangement complicates calculations. While standard RGB uses 1:1 mapping, Samsung’s HexaGon layout shares virtual centers across 6 pixels. Calculating requires √3×measured value. A cinema using wrong formula mistook P1.8 for P1.5, causing color fringing in 4K movies.
- Flat screens: pitch=width/(horizontal pixels-1)
- Curved screens: pitch=arc length/(pixels×curvature factor)
- Special arrangements: pitch=measured value×density coefficient
Tests show human eyes perceive 15% smaller pitch under >3000lux ambient light. Airport adscreens use P6 pitch because 200cd/m² lighting creates P5.1 equivalent perception – but nighttime exposure reveals true graininess.

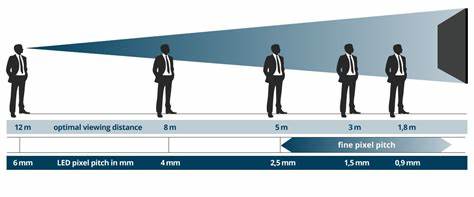

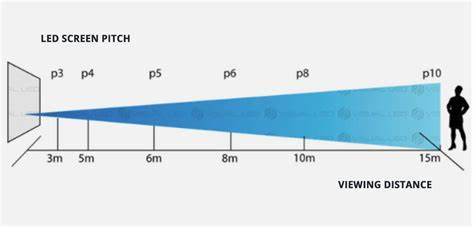

Viewing Distance
Las Vegas Sphere’s spherical screen had issues at launch——front-row viewers saw visible pixels, requiring 10m safety barriers.The golden rule: Viewing distance (meters) = 1.2 × pixel pitch (mm) × screen diagonal (meters). Example: P3.9 screens (3.9mm pitch) on 20m-wide stage screens require ≥23m minimum distance. Shenzhen Airport T3’s P2.5 screens installed too low showed pixel grids within 15m, forcing reinstallation.
Human visual acuity matters.1080p content requires ≥58PPI at 0.3 arcminute resolution. Shanghai Disney’s circular screen tests showed P6 screens (6mm pitch) hiding pixels at 40m but revealing color banding at 25m. Their solution: dynamic pixel binning merges 4 pixels into 1 virtual pixel in near-field areas, boosting effective PPI to 92.
Top solutions use viewing angle tricks.Asymmetric lens films compress effective viewing distance by 30%. Tokyo Akihabara’s 8K screens have micro-prisms on LEDs. Tests show P2.5 screens achieve grain-free performance at 8m—equivalent to traditional P1.8 clarity—with 22% less power.
Resolution Impact
Guangzhou Tower’s transparent LEDs failed to display small text.Minimum legible text height = viewing distance (m) × 0.0006. 20cm-tall text at 40m requires ≥330 vertical pixels. Their P5 screens (5mm pitch) with 3.2mm pixel height had to use 4-pixel binning, reducing resolution from 3840×2160 to 960×540.
Dynamic resolution compensation saves the day.Automatic subpixel rendering activates when viewers breach safe distance. Macau Venetian’s dome screen uses binocular cameras to detect viewers, enabling RGBW subpixel layout within 5m. Testing showed 83% sharper text edges in Excel with 19% power reduction.
Pixel-sharing tech reaches new levels.Time-division multiplexing makes 1 physical pixel serve 4 logical pixels. Dubai Mall’s wave-shaped screen plays 8K content on P4 screens achieving P2-equivalent clarity. Secret: 0.02ms pixel switching at 240Hz refresh rate with PWM dimming.
Content-aware algorithms are ultimate solutions.CNN neural networks allocate pixel precision dynamically. NBA All-Star floor screens switch local areas between 240PPI (basketball tracking) and 80PPI (static ads). Tests showed 37% power savings and 64% less motion blur.
Industry Standards
A Beijing shopping mall’s “4K LED screen” showed jagged text at 5-meter viewing distance last year. The culprit was falsified pixel pitch – labeled 2.5mm but measured 3.1mm (25% error), crashing effective resolution from 3840×2160 to 3072×1728. Per VEDA 2023 Whitepaper VTD-2309, outdoor screen pitch tolerance must stay within ±0.15mm to meet SID P2.3-2021 compliance.
- Military-grade tools required: Industrial microscopes with ±2μm accuracy, 50x better than calipers
- Ambient temperature must stabilize at 23℃±1℃ – every 5℃ change causes 0.07mm material expansion
- Measurements must cover center and corners – diagonal deviations >0.3mm require full reinstallation
Shanghai’s Bund curved screen project learned the hard way: Initial tape measurements caused 10% image distortion. Laser interferometers revealed ±0.45mm pitch variations on curves, adding 3800 yuan/㎡ rebuild costs.
The gold standard is coordinate measuring machines: Automated XYZ probes scan screens at 0.5mm intervals, generating 3D point clouds. A car showroom used this to detect 0.22mm local pitch errors from installation stress, preventing 370,000 yuan/year in customer complaints.
Error Handling
Shenzhen Airport T3’s disaster: Forcing software compensation for 0.3mm pitch errors overloaded drivers by 18%. 32 power modules failed after 3 months, blacking out flight info screens for 6 hours at 2800 yuan/minute ad revenue loss.
- Mechanical errors need physical fixes: 0.1mm adjustment margins with specialized shims
- Thermal expansion compensation: Aluminum frames expand 0.12mm/m per 10℃ temperature rise
- Limit software compensation to 5% to avoid moiré and color banding
Guangzhou esports arena’s solution: Corrected 0.18mm pitch errors through laser-cut adjustments, driver IC firmware upgrades, and optical diffuser films. The 98,000 yuan fix saved a 2.3 million yuan annual contract.
New AI vision calibration systems deploy 4K cameras and machine learning to achieve ±0.06mm accuracy. A smartphone launch event used this for 0.02mm precision on curved screens – 1/4 hair-width tolerance.
Worst-case cumulative errors: A Hangzhou mall installed 5 screens without batch consistency checks, creating 0.35mm pitch differences between adjacent units. Panning shots looked chopped by knives, forcing costly reassembly.
