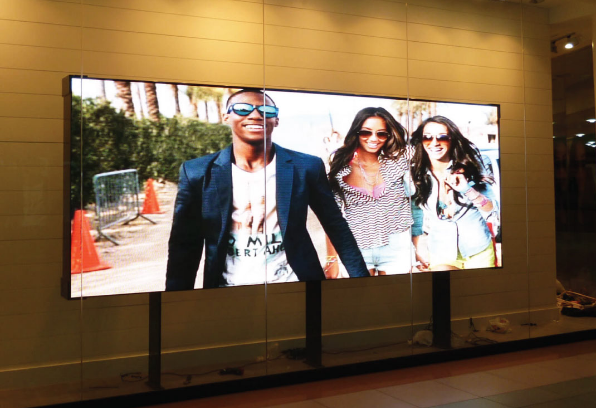

To choose a large-scale LED screen, match pixel pitch to viewing distance: P2.5 for 5m, P6 for 15m. Indoor screens need 800-1500 nits; outdoor requires 5000+ nits and IP65 protection. For smooth visuals, use 1920Hz refresh rate or higher.
Purpose and Use Case
The most important factors for indoor applications, such as retail displays or corporate environments, are pixel pitch and brightness. For screens that are to be viewed from 2-4 meters, the appropriate pixel pitch will lie between 1.5mm to 2.5mm. A P1.5 LED panel boasts approximately 444,444 pixels per square meter, thus assuring sharp resolution of displays with weighty content, such as high-definition videos or serious presentations. The brightness levels for indoor screens range from 800 to 1500 nits, which is quite enough for excellent visibility without eye strain for viewers. For instance, a 4-meter-wide P2-resolution indoor LED panel will have 1,000,000 pixels altogether to ensure sharp details.
In outdoor advertising scenarios, brightness and resistance to weather are of primary importance. For an outdoor LED screen facing high-traffic places, such as a city center, it shall have a minimum brightness of 5000 nits to keep its visibility under direct sunlight. Such panels must have at least an IP65 rating for protection against rain and dust. An 8m × 4m outdoor panel with a pixel pitch of P6 can deliver a resolution as high as 133 pixels per square meter, and that is just about enough for clear visuals as far away as 10 meters. By reference, a billboard-size 10mx6m screen running for 10 hours daily would consume energy at an average of 15,000 watts an hour and cost approximately $10 to $15 daily depending on the local electricity rate.
Entertainment applications in concert halls and theaters also demand high refresh rate and wide viewing angles. Large LED screens go up to 12mx8m or larger and require at least P3 pixel pitch to give good image quality for viewers who may be standing just about 8 meters away. Higher refresh rates, almost up to 3840Hz, prevent any kind of flicker or ghosting on the screen during fast-motion playback. Besides, these panels would normally require a brightness of 2000-3500 nits for semi-indoor applications, such as in covered arenas. The concert LED screen, 12m x 6m in size with P4 resolution, has a refresh rate of 3840Hz and can display flawlessly 25 frames per second for seamless video imaging to present perfect visuals to the audience.
Fine-pitch LED screens for control rooms and monitoring centers require excellent clarity and reliability for applications requiring ultra-high-definition displays with pixel pitches below 1.2mm, showcasing more than 800,000 pixels per square meter. A 5m x 3m control room LED wall featuring P1.2 technology displays an astonishing resolution of 10.4 million pixels. These displays are constructed for continuous operation and have life spans over 100,000 hours, thus making them very economical options for mission-critical installations. Assuming an average of 400 watts per square meter, this would mean that a display as big as 15m² would use roughly 6kWh of electricity daily, while its power usage, costing $0.10/kWh, could reach almost $1,500 annually.
Pixel Pitch
Among all the specifications, pixel pitch is one of the most critical when choosing an LED screen in large format. It will directly affect the resolution, viewing distance, and even the overall quality of the view. Smaller pixel pitches, such as 1.2mm and 1.5mm, are fit for environments where viewers are closer because they provide higher pixel density and better clarity. That means that, for example, a P1.5 LED screen would offer around 444,444 pixels per square meter, ideal for indoor applications—say, conference rooms or control centers—where highly detailed visuals and text should be easily readable from just a few meters away.
For middle-of-the-range viewing distances of up to 5 to 10 meters, it is usually sufficient to have a pixel pitch in the range of 2mm to 4mm. A P3 LED display, with a pixel density of about 111,111 pixels per square meter, balances resolution and cost effectively. They are popularly adopted in retail environments and indoor events. For example, a screen 6 meters wide and 4 meters in height would resolve into 1920×1280 pixels, which would present clear images for presentations, product showcases, or video playback at manageable production costs.
The greater the viewing distance, the more appropriate larger pixel pitches become, such as P6, P8, or P10. For screens viewed from 15 to 20 meters, a P6 pixel pitch at around 27,777 pixels per square meter strikes a good balance in giving enough detail without excessive cost. In P6, that would be a screen 12 meters wide by 6 meters high, with resolutions of 2000×1000 pixels—something which would be ample for advertising billboards or sports arenas where the audience is usually very far away. Brightness levels are usually over 5000 nits for visibility in direct sunlight.
For the most massive displays, such as in stadiums or outdoor concerts, pixel pitches of P10 or above are generally used. These screens are designed for viewing distances over 20 meters. A 20-meter-wide, 10-meter-high P10 screen would have a resolution of 2000×1000 pixels, with a total amount of 2 million pixels. Although the pixel density is higher, the scale of the display makes up for this, and the resolution is sufficient to present clear visuals even at very long distances. Besides that, these screens are usually rugged to withstand environmental conditions and work with great efficiency while consuming power up to 400 to 600 watts per square meter.
Screen Size and Resolution
When selecting a large-scale LED screen, the screen size and resolution must be tailored to the viewing distance, content type, and intended audience. For small indoor spaces such as meeting rooms or retail stores, a screen size of 3 meters wide by 2 meters high is often sufficient. Paired with a pixel pitch of 1.5mm, it boasts a resolution of 2000×1333 pixels, amounting to 2.67 megapixels. A resolution magnitude such as this in a display means that text, images, and video contents are clear and sharp even at the closest distance of 2 meters.
In indoor events or exhibitions, one could use larger sizes, such as 6 meters wide by 4 meters high. The resolution would be 2400×1600 pixels with a P2.5 pixel pitch, giving a total of 3.84 million pixels. This setup is ideal for audiences that are seated between 5 and 10 meters away; it is that fine balance between high resolution and affordability. Whatever the content shown on such a screen—be it corporate presentations or promotional videos—it will retain clarity and visual impact without overloading the pixel density.
Outdoor displays mean larger screen sizes and coarser resolutions will work just as well at greater viewing distances. With a standard billboard size of 12 meters wide by 6 meters high and a P6 pixel pitch, the ensuing resolution is 2000×1000 pixels or 2 megapixels in total. The resolution is enough for audiences from 15 to 30 meters away: passersby on highways or spectators at outdoor events. The bigger screen area will ensure visibility of the content, whereas the resolution keeps the power consumption and costs in order.
For massive installations, such as stadiums or concerts, screens can be wider than 20 meters. A 20-meter by 10-meter high screen with P10 gives a resolution of 2000×1000 pixels, totaling 2 million pixels over the vast area. This setup will work for audiences that are 50 meters or more away from the display. On such large screens, size is favored over ultra-high resolution to keep text and images readable even at very far seating. These kinds of screens consume upwards of around 400 to 600 watts per square meter, depending on brightness settings and other environmental conditions.
Brightness
Brightness is considered one of the critical parameters in choosing a large LED screen, as it will determine how well the display is visible under different conditions of lighting. For indoor purposes, such as conference rooms, retail outlets, or auditoriums, around 800-1500 nits works just fine. A screen installed in a moderately lit room with 1200 nits brightness can well present clarity without causing strains in the eyes. A typical 4-meter by 3-meter screen of this brightness rating would consume some 400 watts per square meter, amounting to some 4.8 kilowatts for 10 hours of use every day.
Outdoor screens are those that function in outdoor environments where they are exposed to direct sunlight. For such cases, they have to be of a higher brightness grade to minimize glare and retain good visibility. LED panels with over 5000 nits are necessary for this purpose. A billboard standard size, 12 meters wide and 6 meters high, can reach a brightness of 6000 nits for excellent readability, even during midday sunlight. This usually consumes 700 to 900 watts per square meter, hence it would consume 50.4 to 64.8 kilowatts for operational hours of 10 hours. That much brightness ensures that the advertisement contents will remain effective and captivating whatever the weather conditions may be.
The brightest displays for semi-outdoor installations—for example, partially covered airport terminals or stadiums—fall somewhere in the range between 2500 and 4000 nits. With 3500 nits brightness, a 10 meters by 5 meters LED screen is satisfactorily visible up to 20 meters. Power consumption is about 500 watts per square meter; with the same operating time, this would mean 25 kilowatts daily. Slightly reduced brightness from fully outdoor screens supports power cost savings while providing high-quality visuals.
Adjusting brightness becomes critical for some specific use cases, like rental screens for concerts or temporary events. These screens range from 2000 to 5000 nits, depending on the nature of an event and ambient lighting. For instance, a concert screen 15 meters wide and 8 meters high that operates at 4500 nits provides visibility for great audiences while still being flexible for evening shows. Such a screen would be rated at roughly 700 watts per square meter at maximum brightness, thus 84 kW for 8 hours of operation during an event.
Refresh Rate
Refresh rate is one of the most basic requirements to be met for LED screens, measured in terms of Hertz for smooth video or image playback. Considering indoor displays, such as a conference room or an indoor retail outlet, it is recommended that a minimum refresh rate of 1920Hz be opted for so that even fast-moving graphics, such as video loops and animations, can be displayed without flicker. For instance, an LED screen sized 4×2.5 meters with refresh rate of 1920Hz and P2 pixel pitch gives the audience quite a smooth visual distance within only several meters. It is quite appropriate to apply it in places where there are continuous presentations and playing of videos without stuttering in order not to disturb the viewers.
The refresh rate, in relation to viewing distance and influence of environmental lighting, reaches as high as 3840Hz for outdoor screens, such as billboards or displays on stadiums. For example, a billboard measuring 10 meters in width and 6 meters in height could refresh content at 3840Hz without motion artifacts for fast-changing advertising material. That becomes more critical when cameras record such screens, since their refreshing rates would give an output with flicker or banding on the captured video. Outdoor high-refresh-rate panels consume about 15% more energy than their counterparts, averaging at around 600 to 800 watts per square meter, depending on brightness.
In live concerts or sport broadcasts, refresh rates higher than 5000Hz may be required to support the fast action. Examples include using a 15-meter by 10-meter LED screen for live concerts; the background usually displays 5000Hz refresh rate to ensure perfect synchronization of video feed and light effects. These high-refresh-rate screens cope well with fast changes, avoid ghosting or lag, and are especially important in maintaining audience attention. They are hungrier for power, averaging from 800 to 1000 watts per square meter depending on brightness and pixel pitch—for example, P4 for mid-range visibility.
For a control room or broadcast studio application where requirements need to be top-notch, refresh rates upwards of 7680Hz or more would be preferred. That would require the best class of image stability, considering that these environments might flicker when viewed on a high-speed camera or under variant light conditions. A 5×3-meter LED screen with refresh rate 7680Hz and pixel pitch P1.5 provides unrivaled clarity and smoothness, making it apt for monitoring at close proximity. Such screens are also optimized for energy efficiency, consuming about 400 to 600 watts per square meter and ensuring long-term operation with minimal power costs while maintaining the highest visual standards.
