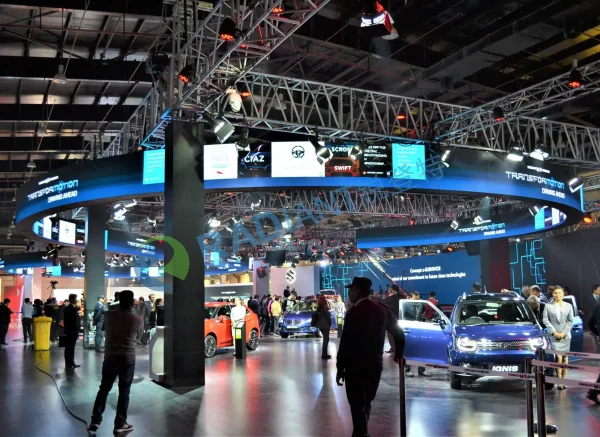

P4 Flexible LED Screen | 4mm Curved Waterproof Display for Museums & Car Showrooms
High Flexibility
Ultra-thin Design
Vivid Image Quality
Lightweight and Durable
Energy Efficient
Radiant’s P4 4mm Flexible LED Display Series
Radiant’s P4 4mm Flexible LED Display Series redefines visual innovation with its cutting-edge engineering.
IP43 Protection
Featuring an IP43-rated waterproof construction that resists dust ingress and protects against water splashes, this ultra-thin 3.2mm panel thickness display thrives in both climate-controlled indoor environments and semi-outdoor applications. The 160° ultra-wide viewing angle ensures consistent color accuracy and image integrity even from extreme lateral positions.
Technical Excellence
-
4K Video SupportUltra-HD content rendering with precision clarity
-
Magnetic Mounting SystemQuick-install configuration for creative installations
-
Extended Durability50,000 hours operational lifespan
Design Features
IP43
Protection Rating
3.2mm
Panel Thickness
-10°C~+50°C
Operating Range
99%
DCI-P3 Coverage
Premium Visual Performance
1200nits peak brightness with 16-bit grayscale processing for museum-grade color
3840Hz refresh rate eliminates flickering in 4K slow-motion playback
15° horizontal/vertical bending for column wraps and curved surfaces
Magnetic quick-install system for architectural façades and pop-up experiences
Details Specification
| Item | RDT-TS4.0 | Pixel Pitch | 4.0mm |
| Module size | 240mm x 160mm | Module Resolution | 60 x 40 pixels |
| Module Weight | 0.32 kg | Physical Density | 62500 dots/m² |
| Brightness | 1200nits | Refresh Rate | 1920-3840 Hz |
| Driving Mode | Constant Current 1/32 | Gray Level | 16 bit |
| Working Voltage | 100-240V AC, 50&60Hz | Protection Level | IP43 |
| Maximum Power Consumption | 460W /m² | Average Power Consumption | 130W /m² |
| View Angle | 160ºH/140ºV | Viewing Distance | >4 m |
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH |
| LED Life(Normal Tep) | 100,000 Hours | Viewing Angle | 140°/140° |
| Application | Indoor | Installation Type | Fixed installation |
| Maintenance Method | Front (Magnetic module) | Software System | Novastar |
