P1.86 Flexible LED Curved Screen | 800nits HD Display | Immersive Advertising Experience
Flexible, curved display for creative design
High brightness and wide viewing angles
Vivid color accuracy and energy efficiency
Multiple resolution options
Easy remote and Wi-Fi control
Product Introduction

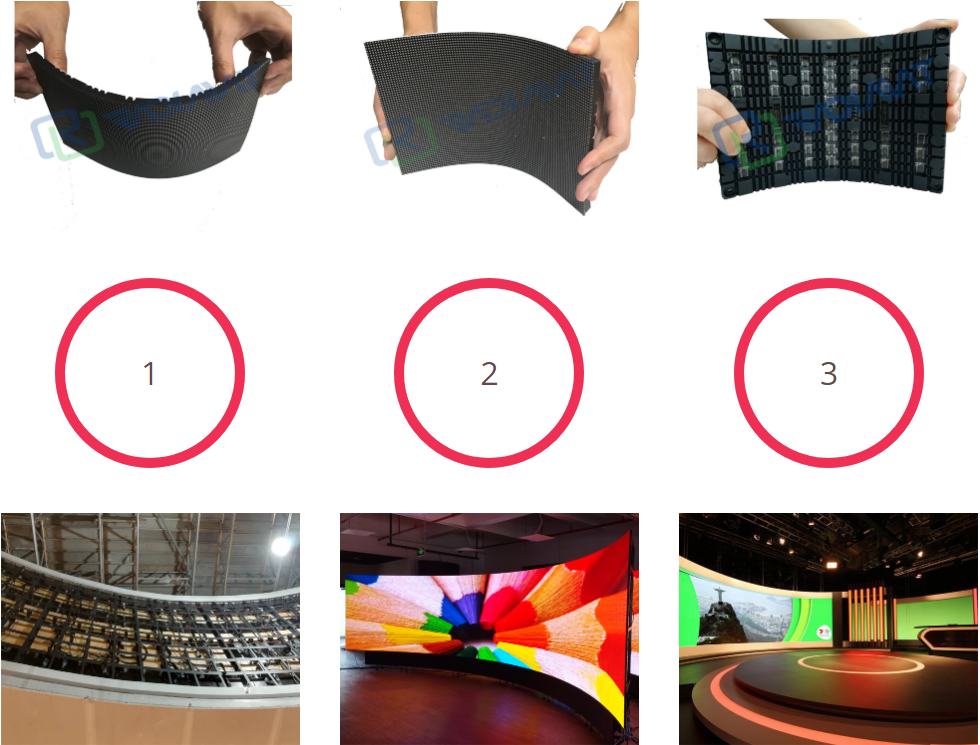

Radiant P1.86 Flexible LED Curved Screen
1.86mm pixel pitch technology delivers
cinema-grade clarity
with sharp imagery at close range.
800nits brightness ensures vivid colors in
indoor/semi-outdoor environments,
supported by a 160° viewing angle.
Advanced Protection & Performance
IP43-rated protection meets
3840Hz refresh rate for blur-free motion.
Lightweight base enables
±15° curvature adaptation
for 3D installations.
Smart Control System
WiFi remote management enables
multi-screen sync and
real-time adjustments.
Modular design supports
rapid installation
and energy-efficient operation.
Featured Applications
Digital Advertising
Exhibition Displays
Entertainment Productions
Architectural Integration
Exhibition Displays
Entertainment Productions
Architectural Integration
Details Specification
| Item | RDT-TS1.86 | Pixel Pitch | 1.86mm |
| Module size | 240mm x 160mm | Module Resolution | 128 x 86 pixels |
| Module Weight | 0.32 kg | Physical Density | 289050 dots/m² |
| Brightness | 800nits | Refresh Rate | 1920-3840 Hz |
| Driving Mode | Constant Current 1/32 | Gray Level | 16 bit |
| Working Voltage | 100-240V AC, 50&60Hz | Protection Level | IP43 |
| Maximum Power Consumption | 460W /m² | Average Power Consumption | 130W /m² |
| View Angle | 160ºH/140ºV | Viewing Distance | >1.8m |
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH |
| LED Life(Normal Tep) | 100,000 Hours | Viewing Angle | 140°/140° |
| Application | Indoor | Installation Type | Fixed installation |
| Maintenance Method | Front (Magnetic module) | Software System | Novastar |
