P3 flexible LED screen column video wall for TV station Architectural design
High-Resolution P3 Clarity
Flexible, Curvable Panels
Slim, Lightweight Design
Seamless Visuals
Product Introduction
The P3 flexible LED screen column is an innovative display solution designed to enhance architectural aesthetics while delivering high-quality visuals. Engineered specifically for unique environments like TV stations, this flexible LED video wall wraps seamlessly around columns, creating a stunning, 360-degree immersive experience. With its slim profile and lightweight, bendable panels, the P3 flexible LED screen offers endless possibilities for creative installations without compromising display clarity or durability.
Application Scenarios:

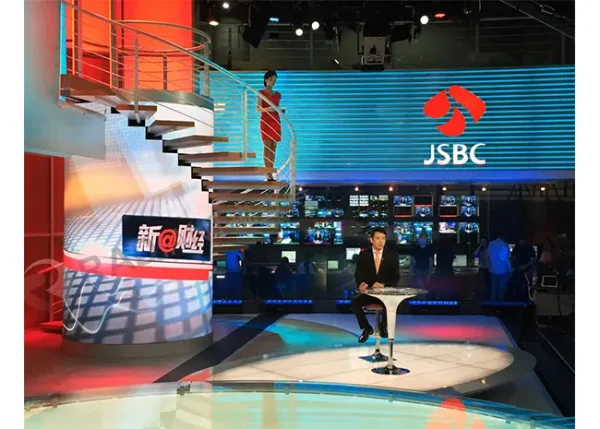

- TV stations and broadcasting studios
- Architectural installations
- Retail and public spaces
- Corporate events and exhibitions
Details Specification
| Item | RDT-TS3.0 | Pixel Pitch | 3.0mm |
| Module size | 240mm x 160mm | Module Resolution | 80 x 52 pixels |
| Module Weight | 0.32 kg | Physical Density | 111,111 dots/m² |
| Brightness | 1200nits | Refresh Rate | 1920-3840 Hz |
| Driving Mode | Constant Current 1/32 | Gray Level | 16 bit |
| Working Voltage | 100-240V AC, 50&60Hz | Protection Level | IP43 |
| Maximum Power Consumption | 460W /m² | Average Power Consumption | 130W /m² |
| View Angle | 160ºH/140ºV | Viewing Distance | >3 m |
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH |
| LED Life(Normal Tep) | 100,000 Hours | Viewing Angle | 140°/140° |
| Application | Indoor | Installation Type | Fixed installation |
| Maintenance Method | Front (Magnetic module) | Software System | Novastar |
