P1.5 Flexible LED screen curved video wall Exhibition curved screen

Flexible design

High-resolution

Thin, lightweight

Easy to set up

Durable, weather-resistant

Energy-efficient

Product Introduction

P1.56 Flexible LED Screen is a versatile, high-performance display product for varied uses. With its flexible design and 1.56mm pixel pitch, this display is engineered to be clear and adaptable in function. From indoor display applications to unique, creative, curved installations, this screen answers the needs of advertising displays, retail, creative stage backdrops, and many other uses. An ultra-thin, modular structure seamlessly fits into any design framework, promising an amazing visual experience across all settings.

Application Scenario:

  • Creative stage backdrops
  • Indoor advertising displays
  • Mall window designs
  • Large exhibition displays
  • Corporate conference room walls
  • Curved or irregular architectural decor
  • Interactive screens in retail spaces

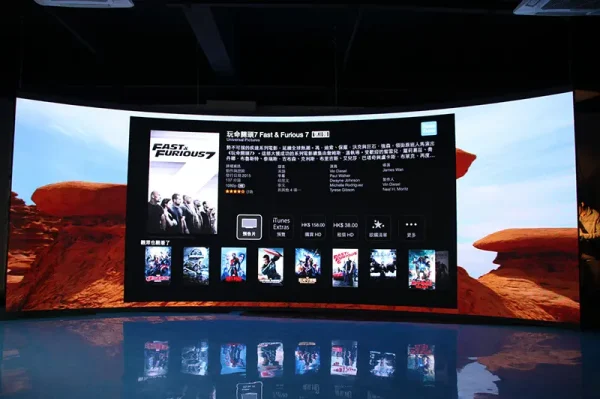

P1.5 Flexible LED screen
P1.5 Flexible LED screen

Details Specification

Item RDT-TS1.56 Pixel Pitch 1.56mm
Module size 240mm x 160mm Module Resolution 154 x 102 pixels
Module Weight 0.34 kg Physical Density 410913 dots/m²
Brightness 600nits Refresh Rate 1920-3840 Hz
Driving Mode Constant Current 1/51 Gray Level 16 bit
Working Voltage 100-240V AC, 50&60Hz Protection Level IP43
Maximum Power Consumption 460W /m² Average Power Consumption 130W /m²
View Angle 160ºH/140ºV Viewing Distance >1.5m
Working Temperature -10℃~ +50 ℃ Working Humidity 10 – 95 % RH
LED Life(Normal Tep) 100,000 Hours Viewing Angle 140°/140°
Application Indoor Installation Type Fixed installation
Maintenance Method Front (Magnetic module) Software System Novastar
